The generated energy reliably powers the RF chipset, ensuring stable wireless signal transmission with every press.
Suitable as a bedside table button or a small scene button

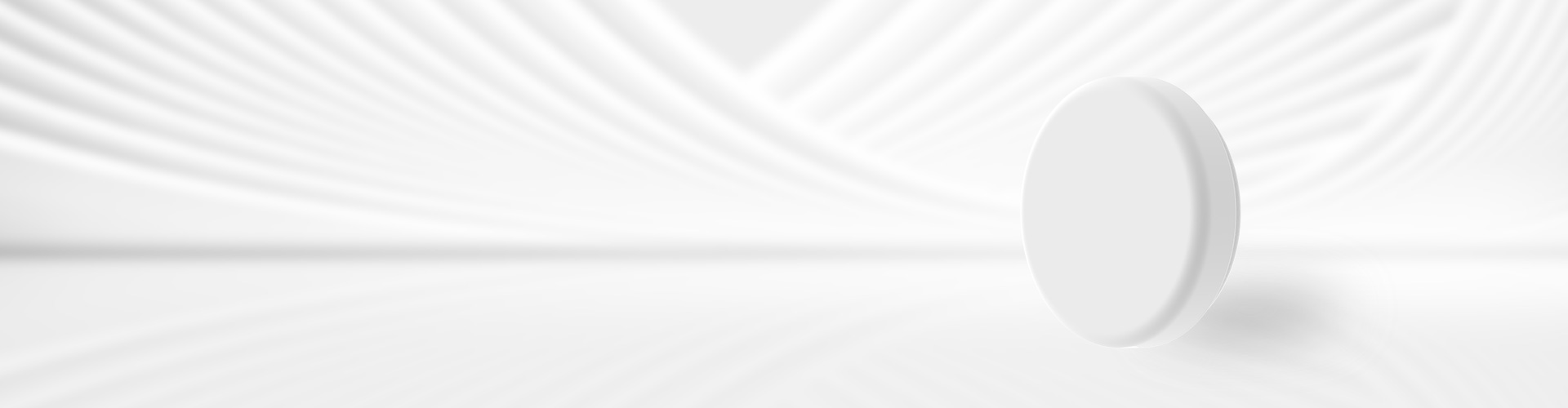

Compact round design allows flexible installation and blends easily into various environments.
The transmitter is self-powered.
The transmitter can be installed with 3M sticker, and the receiver can be placed in the socket.
Each transmitter can select the different ringtones, so you can easily identify the position of ringtone.
There are 38 ringtones can be selected (memory function) 4 levels of volume from 25 to 85dB.
Emergency calls and alarms available
When someone presses the doorbell, the eye-catching backlight is flashing. Especially suitable for the elderly and deaf.
Examples Of Use Cases
Q7 Series | Wireless Kinetic Push Button
| Operation Type | Rebound type |
| Power Supply | Self-powered |
| Modulation | FSK |
| Communication Protocol | RF 433 MHz |
| Data Rate | 250 kbps |
| Button Count | 1 button |
| Communication Range | 80 m (Outdoor), 25 m (Indoor) |
| Mechanical Lifetime | ≥ 100,000 operations |
| Housing Color | White + Black |
| Dimensions | 61 × 61 × 16 mm |
| Operating Temperature | -20 ℃ ~ +55 ℃ |
| Storage Temperature | -20 ℃ ~ +65 ℃ |
| Operating Humidity | 0% – 60% RH, non-condensing |
| Storage Humidity | 0% – 70% RH, non-condensing |
| Housing Material | PC |
Support & Questions
Please contact us if you need the datasheet.
