Harnesses efficient solar energy, operating under ambient light as low as 50-100 lux. Its integrated energy storage supports up to 7 days of standby or 3 days of active monitoring after a full charge, completely eliminating battery replacement.
Direct Pairing with Controller – No Gateway Required
Rated IP67 for complete dust and water resistance. Constructed with high flame-retardant (UL94 V-0) materials and an operating range of -20°C to +55°C, it withstands harsh outdoor and indoor environments.
Accurate & Reliable Detection：Utilizes a reed switch with a wide 22mm trigger distance for easy installation. Features stable FSK modulation and a reliable 50m (outdoor) communication range for precise and consistent open/close signal transmission.
Harvesting directly its energy from your push, the Door and Window Sensor doesn’t need any battery (and any wire) to operate
Advantages of a wireless system (flexibility) without the disadvantages (no battery = no maintenance)
This Door and Window Sensor can be mounted concealed in the door frame, it also can be mounted externally on the surface of door and being fixed with screws
Mount it, and forget it
Examples Of Use Cases

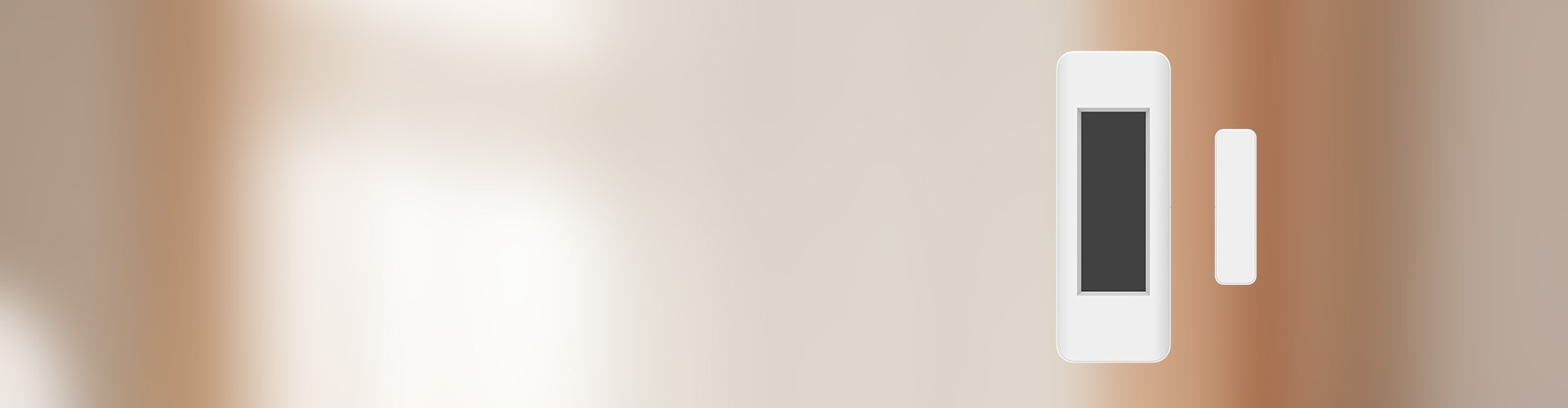

D9 Solar-Powered Door/Window Sensor sensor
| Product Model | D9 |
| Power Supply Method | Solar-powered |
| Detection Type | Reed Switch |
| Indicator Light Color | Red & Green |
| Operating Life in Darkness | • 7 days: Standby • 3 days: 10 transmissions/hour • 10 hours: 100 transmissions/hour |
| Time to Full Charge | Initial Pairing (6 min @ 200 lux) After Startup (20 hours @ 200 lux) Cold Start (35 hours @ 200 lux) |
| Lighting Requirement for Sustained Operation | 50 lux → Supports 30 transmissions/hour • 100 lux → Supports 60 transmissions/hour |
| Maximum Trigger Distance | 22mm |
| Communication Frequency | RF 433MHz |
| Pairing Method | Button Pairing |
| Modulation Mode | FSK |
| Trigger Signal | Transmits signal when door/window contact opens/closes |
| Communication Range | 50m outdoors, 25m indoors |
| Storage Capacity | Can store information for up to 10 wireless kinetic energy switches |
| Housing Material | High Flame-Retardant PC Plastic (UL94 V-0 Rating) |
| Product Color | White |
| Product Dimensions | Main Body: L60×W22×H10mm |
| Magnet | L30W8H10mm |
| Housing Coating Material | UV-Stabilized PC/ABS |
| Installation Method | Double-sided adhesive tape installation |
| Operating Temperature | -25°C ~ +55°C |
| Storage Temperature | -25°C ~ +85°C |
| Relative Humidity | <85% RH, non-condensing |
| Storage Humidity | <85% RH, non-condensing |
| IP Rating | IP 67 |
Support & Questions
Please contact us if you need the datasheet.
