ERC3402/03/04 color temperature & furniture lighting controller

Flexible Channel Options

Available in 2/3/4-channel models for independent control of multiple devices, saving space and cost.

True No-Neutral Design

Works stably without a neutral wire—ideal for retrofitting in older homes without rewiring.

No External Capacitor Needed
Built-in optimized circuitry eliminates flickering and ensures compatibility with various LED loads—plug and play.

Our ERC2303 wireless dimmer receiver can be paired with Ebelong wireless kinetic switch, which is wireless and battery-free.

One very small size product, can be hidden in the corner of furniture.

A wireless dimmer supporting PWM dimming. You can use an ERC2303 controller adjust the color temperature of light strip.

APP & voice control supported, a wonderful part of your smart home automation.

ERC2303 wireless dimmer receiver is a small low voltage DC PWM dimmer receiver, especially suitable for furniture lighting strip control.

Using an ERC2303 wireless dimmer receiver, upgrade your traditional wired devices to intelligent system.

Examples Of Use Cases

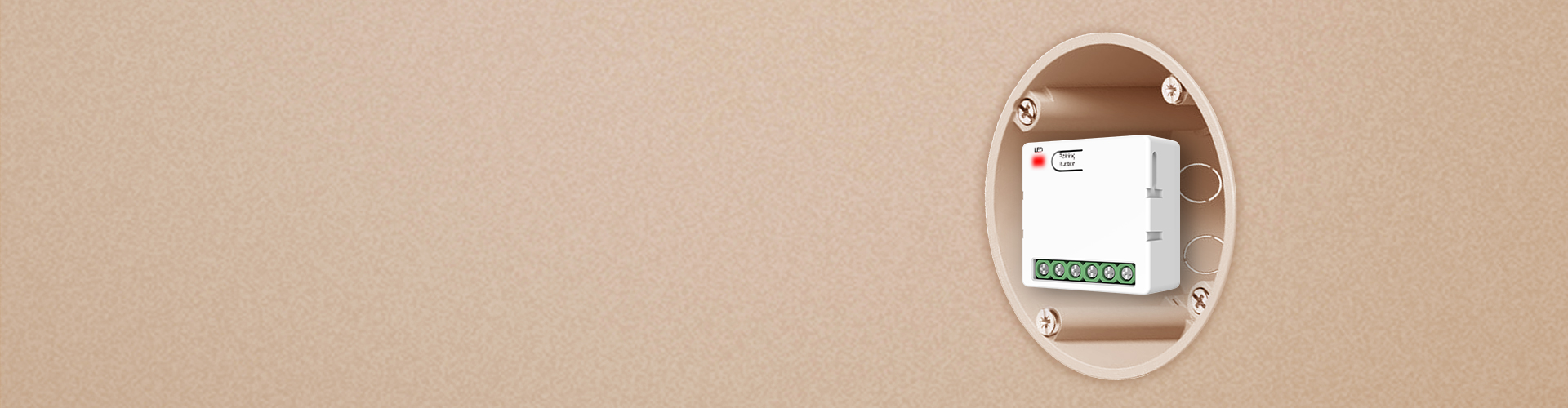

Ultra-Compact No Neutral Controller

Product model	ERC3403
Operating Voltage	AC 110-220V 50/60Hz
Power Supply Mode	No Neutral Power
Wireless Frequency	RF 433MHz
Output Channel	3 Channels
Maximum Power	LED ：3x（70W/110V）(PF>0.9) 3x（90W/220V）(PF>0.9)
Communication Distance	80m（Outdoor） 30m（Indoor）
Standby Power Consumption	< 0.1W
Wiring Mode	Terminal,No Neutral Wire
Installation Method	Built-in switch bottom box
Product Dimensions	L39.2W39.2H18.5mm
Operating Temperature	-10℃ ~ +45℃
Operating Humidity	10%-90% RH，Non-condensing
Storage Temperature	-20℃ ~ +55℃
Storage Humidity	10%-90% RH，Non-condensing
Protection Class	IP20
Capacity	Up to 10 kinetic remote button can be paired with each circuit
ECS	Compatible with ECS
Power-off Memory	Yes
Certification Standard	Complies with NOM safety certification, RoHS certification, CE certification standards
