It adopts MEA energy harvesting technology to efficiently capture kinetic energy from each press, ensuring stable and reliable energy output.
Lighting On/Off and Dimming Control
After pairing with an Ebelong wireless receiving controller, it enables lighting on/off and dimming control.
Reliable RF Wireless Communication
The harvested energy directly drives the RF chipset, enabling reliable RF wireless signal transmission.
Completely wireless. Powered by kinetic energy generated from simply pressing the switch.
Mount the switch with screws or adhesive tape.
Adapt to European standard switch size.
Zigbee green power protocol is directly connected to Tuya gateway.
Examples Of Use Cases

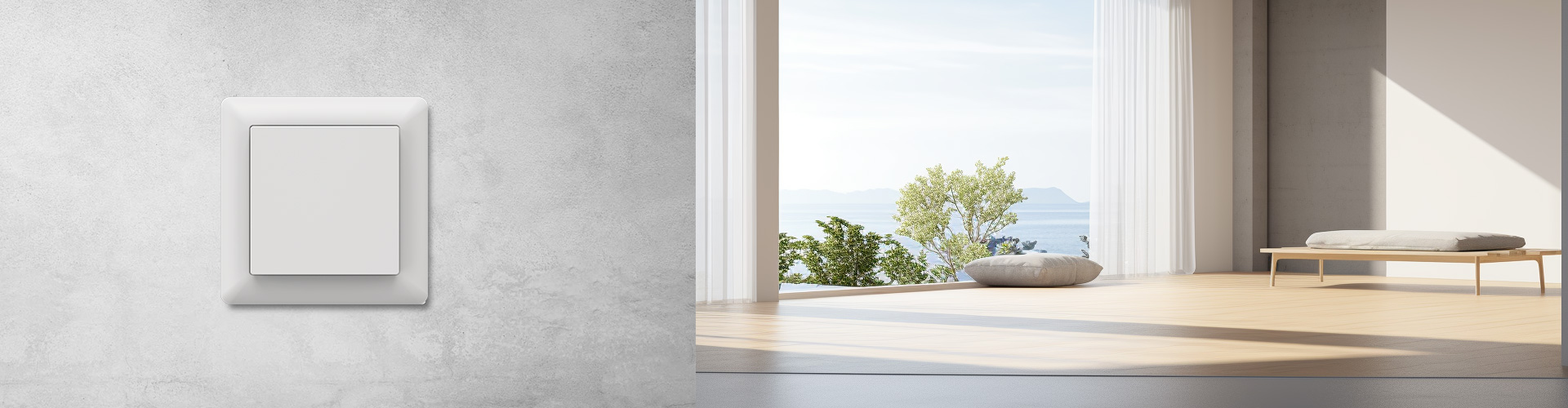

E4-A Series Wireless Kinetic Switch
| Switch type | Push button |
| Working Type | Push button |
| Power Supply | Self-powered |
| Modulation System | FSK |
| Radio Frequency | RF 433MHz |
| Keys Quantity | 2keys/4keys |
| Operate Range | up to 80m outdoors up to 25m indoors (May vary depending on conditions) |
| Life Time | ≥100,000 times |
| Life Time | white/silver/golden |
| Working Temperature | -20 ~ +55°C |
| Casing Material | PC |
| Mounting Method: | Paste mounting/screw locking |
