Surface-Mount, Paste Installation
Simply paste onto ceiling surfaces or above ceiling tiles—no cutting or embedding, perfect for retrofitting finished spaces.
Standard 0-10V Dimming
Industry-standard 0-10V interface ensures smooth, precise dimming for LED drivers and fluorescent ballasts in commercial and industrial applications.
Hidden Deployment, Clean Aesthetic
Mounts discreetly above the ceiling, keeping the technology invisible while preserving interior design.
With junction box cover, can be placed on the ceiling.
0～10V dimmer.
Able to restore the previous brightness before blackout.
Optional gateway or wifi networking to achieve app and voice control (google assistant, Amazon Alexa)
Examples Of Use Cases

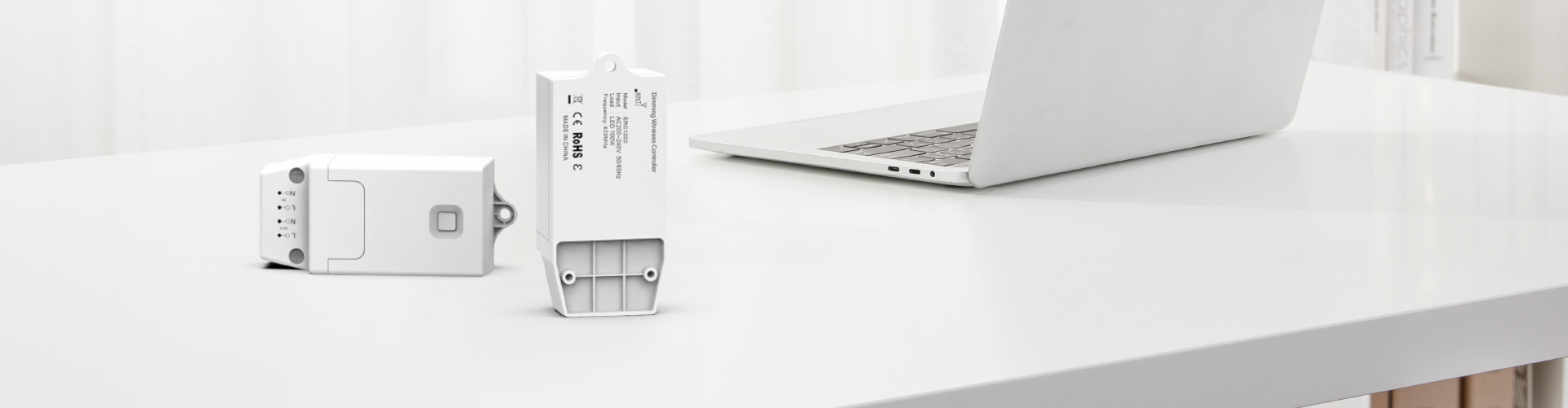

C12 Series | 0～10V dimmer
| Product model | RF version ERC1202 WiFi version ERC1202-W |
| Power supply | AC100V ~ 240V 50/60Hz |
| Output signal | 0~10V / Max 20mA |
| Radio frequency | RF version: RF 433MHz WiFi version: WiFi IEEE 802.11 b/g/n 2.4G & RF 433MHz |
| Operating range | Up to 80m outdoors Up to 25m indoors (May vary depending on conditions) |
| Operating temperature | -20℃ ~ +55℃ |
| Memory capacity | Maximum 10 switches |
| Dimensions | L88.7*W43.9*H31mm |
| Certifications and standards | Europe EN 60669-1:2018 EN 60669-2-1:2004+A1:2009+A12:2010 ETSI EN 301489-1 V2.2.3(2019-11) ETSI EN 301489-1 V2.1.1(2019-03) EN 55032:2015 EN 55035:2017 EN IEC 61000-3-2:2019 EN 61000-3-3:2013+2019 ETSI EN 300220-1 V3.1.1(2017-02) ETSI EN 300220-2 V3.2.1(2018-06) |
Support & Questions
Please contact us if you need the datasheet.
